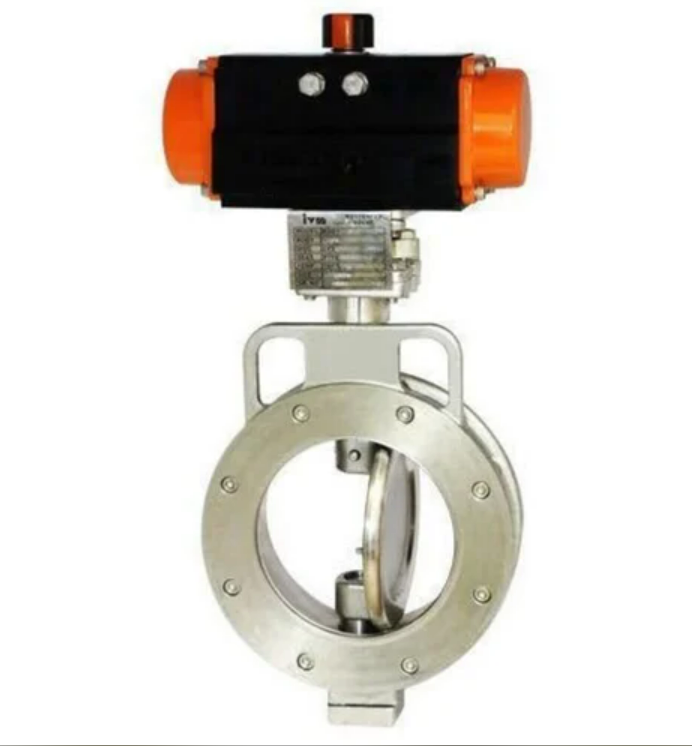

Pneumatic Actuator Operated Butterfly Valve
A Pneumatic Actuator Operated Butterfly Valve is a highly efficient flow control device widely used in industrial pipelines for regulating or isolating the flow of liquids, gases, and slurries. This valve combines a butterfly valve with a pneumatic actuator, which uses compressed air to automate the opening and closing operation. Due to its fast response, reliability, and low maintenance, pneumatic butterfly valves are commonly used in industries such as water treatment, chemical processing, food processing, power plants, and oil & gas.
The butterfly valve consists of a circular disc mounted on a rotating shaft. When the actuator receives compressed air, it rotates the disc either 90 degrees to open the valve or returns it to the closed position. Pneumatic actuators are typically available in two types: single-acting and double-acting. Single-acting actuators use a spring return mechanism to move the valve back to its default position during air failure, while double-acting actuators require air pressure for both opening and closing.
One of the main advantages of pneumatic actuator operated butterfly valves is their quick operation and precise control. They are lightweight, compact, and require less space compared to other automated valves. These valves also provide excellent sealing performance and can handle high-pressure and high-temperature applications depending on the material used.
These valves are manufactured using durable materials such as stainless steel, cast iron, ductile iron, or PVC, making them suitable for various industrial environments. Additionally, they can be integrated with accessories such as limit switches, solenoid valves, positioners, and air filter regulators to improve automation and control efficiency.
Pneumatic actuator butterfly valves are widely used in automated industrial systems where remote operation and fast response are essential. Their cost-effective design, easy installation, and reliable performance make them a preferred choice for modern fluid control systems. Businesses looking for efficient and automated valve solutions often rely on pneumatic actuator operated butterfly valves for smooth and consistent pipeline operations.
