Butterfly Valve Suppliers in Delhi & Noida – Aira Butterfly Valves
S R Metal Industries is a trusted supplier of Aira Butterfly Valves in Delhi and Noida, offering industrial butterfly valves for applications involving water, air, gas, oil, cement, slurry and other industrial media. Available in multiple body, disc and seat materials, Aira Butterfly Valves can be selected according to pressure, temperature, media and installation requirements.
Whether you are looking for Butterfly Valve Suppliers in Delhi, Butterfly Valve Suppliers in Noida, industrial butterfly valves, wafer type butterfly valves, lug type butterfly valves or flanged butterfly valves, S R Metal Industries provides application-oriented valve solutions for industrial and commercial requirements.
Aira Butterfly Valve Specifications
Specification Available Options
Brand Aira
Supplier S R Metal Industries
Body Material CF8M, WCB, CF8, CF3M, Gray Iron, Cast Steel
Disc Material Gray Iron, Cast Steel, Ductile Iron, CF8, CF8M, CF3M, CD4MCuN
Disc Coating / Lining Options S.G. Iron with Teflon, Teflon, Powder, Nylon Coated, Rubber Lined
Size Range 1.1/2″ to 48″
Seat Material Nitrile, EPDM, Viton, Hypalon, Neoprene
Temperature As per selected model
Pressure Rating As per selected model
Media Air, Water, Gas, Oil, Cement & Slurry
End Connections Flanged End, Wafer Type, Double Flanged, Lug Type
What Is a Butterfly Valve?
A butterfly valve is a quarter-turn industrial valve that uses a rotating disc to control or isolate the flow of fluid or gas through a pipeline. The disc rotates around a central or offset shaft, allowing the valve to open, close or regulate flow.
Butterfly valves are widely used because of their compact design, relatively low weight, quick operation and suitability for large-diameter pipelines.
Aira Butterfly Valves for Industrial Applications
Aira Butterfly Valves are available in different material combinations and connection types to suit a wide range of industrial applications. The selection of body, disc and seat material depends on the operating media, temperature, pressure and service conditions.
Typical applications include:
Water treatment and water supply systems
Industrial process pipelines
Air handling systems
Gas pipelines and systems
Oil and process-fluid applications
Cement handling systems
Slurry applications
Chemical and general industrial plants
HVAC and utility pipelines
Large-diameter flow isolation systems

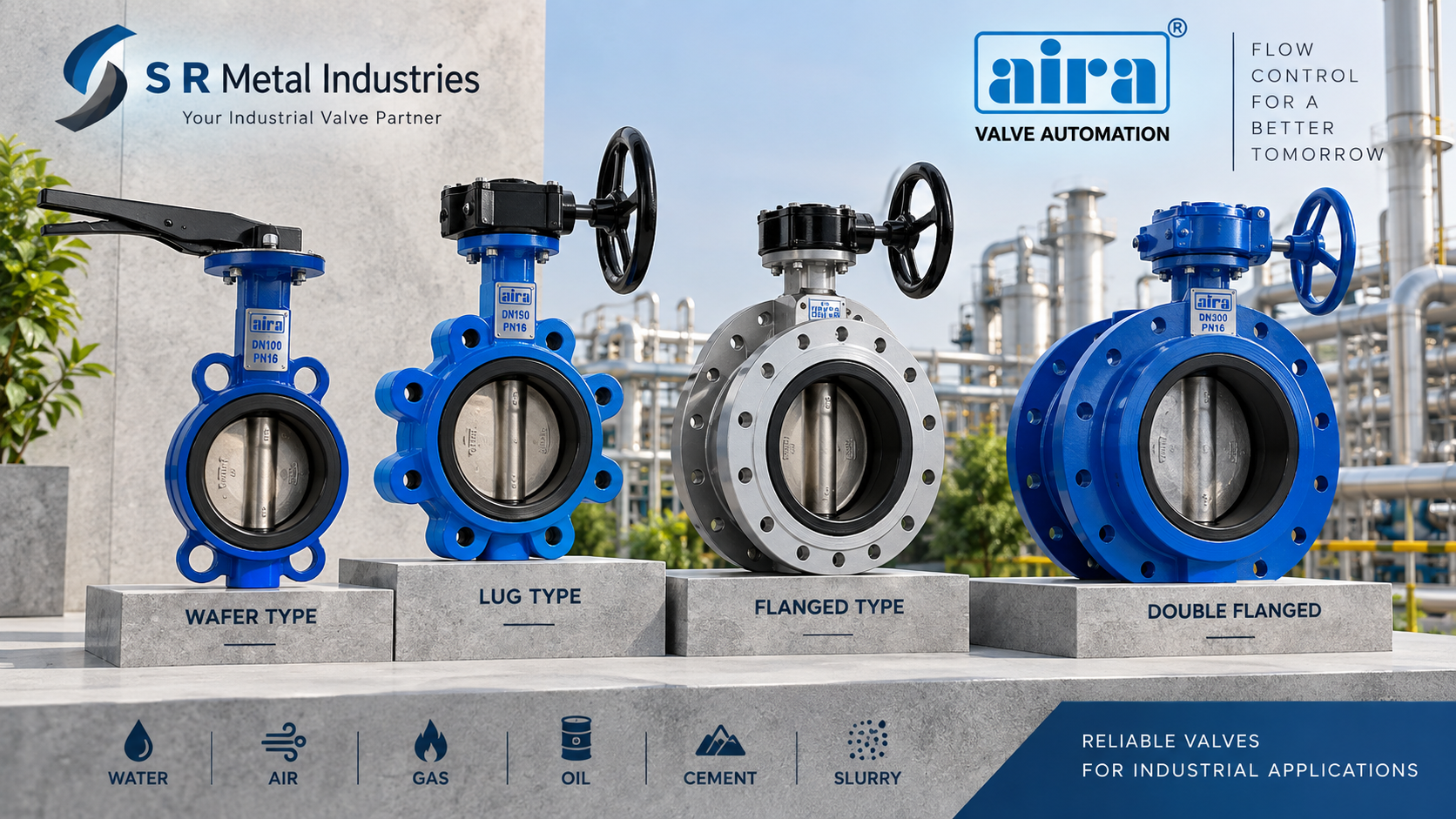

Butterfly Valve Types Available from S R Metal Industries
Wafer Type Butterfly Valve
A wafer type butterfly valve is installed between two pipeline flanges. Its compact construction makes it suitable where installation space and weight are important considerations.
Lug Type Butterfly Valve
Lug type butterfly valves feature threaded lugs around the valve body and can be useful in systems where independent pipeline-side removal is required.
Flanged Butterfly Valve
Flanged butterfly valves provide a flanged connection with the pipeline and are commonly selected for industrial installations where a robust bolted connection is required.
Double Flanged Butterfly Valve
Double flanged butterfly valves have flanges on both sides and are generally selected for larger pipeline systems and applications requiring a more substantial valve connection.
How to Select the Right Butterfly Valve?
Choosing the correct butterfly valve requires more than simply selecting the pipeline size. Consider the following parameters:
1. Pipeline Size:
Aira Butterfly Valves are available in sizes from 1.1/2″ to 48″, depending on the selected model.
2. Body Material:
Select the body material according to the media, pressure, temperature and environmental conditions.
3. Disc Material:
Disc options include ductile iron, cast steel, CF8, CF8M, CF3M and CD4MCuN, along with different coating or lining options.
4. Seat Material:
Nitrile, EPDM, Viton, Hypalon and Neoprene seats can be selected according to the application and media compatibility.
5. Pressure and Temperature:
The applicable pressure and temperature depend on the specific Aira butterfly valve model and material combination.
6. End Connection:
Select wafer, lug, flanged or double-flanged construction according to the pipeline design and installation requirements.
Why Choose S R Metal Industries for Aira Butterfly Valves?
S R Metal Industries supplies Aira Butterfly Valves in Delhi and Noida for industrial, commercial and project requirements. The company can help buyers identify a suitable valve configuration based on pipeline size, media, pressure, temperature and connection requirements.
Key considerations include:
Aira brand industrial valve options
Multiple body and disc materials
Multiple seat material choices
Large size range up to 48 inches
Wafer, lug and flanged connection options
Applications for water, air, gas, oil, cement and slurry
Suitable options for different industrial requirements
Support for valve selection based on application
Butterfly Valve Suppliers in Delhi
If you are searching for Butterfly Valve Suppliers in Delhi, S R Metal Industries provides Aira butterfly valve solutions for industrial and commercial pipeline applications. Buyers can specify the required valve size, body material, disc material, seat material, pressure rating, temperature and end connection when requesting a quotation.
Butterfly Valve Suppliers in Noida
S R Metal Industries also serves customers looking for Butterfly Valve Suppliers in Noida. Aira Butterfly Valves can be selected for different industrial applications based on media compatibility, operating conditions and pipeline requirements.
The supplier can cater to requirements for wafer type, lug type, flanged and double-flanged butterfly valves in different sizes and material configurations.
Frequently Asked Questions
1. Who are Butterfly Valve Suppliers in Delhi & Noida?
S R Metal Industries is a supplier of Aira Butterfly Valves in Delhi and Noida, offering different valve sizes, body materials, disc materials, seat materials and end connections for industrial applications.
2. What is the size range of Aira Butterfly Valves?
The specified size range is 1.1/2″ to 48″, depending on the selected Aira butterfly valve model.
3. What materials are available for Aira Butterfly Valve bodies?
Body material options include CF8M, WCB, CF8, CF3M, Gray Iron and Cast Steel.
4. What disc materials are available?
Depending on the model, disc options include Gray Iron, Cast Steel, Ductile Iron, CF8, CF8M, CF3M and CD4MCuN. Different coating and lining options are also available.
5. Which seat materials are available?
Aira Butterfly Valves can be specified with Nitrile, EPDM, Viton, Hypalon and Neoprene seats, depending on the selected model and application.
6. Where are butterfly valves commonly used?
Butterfly valves are commonly used for flow isolation and control in water, air, gas, oil, cement and slurry applications, subject to the suitability of the selected model.
7. Are Aira Butterfly Valves available in wafer type?
Yes. Wafer type is one of the specified end-connection options for Aira Butterfly Valves.
8. What other end connections are available?
The specified options include Flanged End, Wafer Type, Double Flanged and Lug Type.
9. How do I choose the right butterfly valve?
The correct valve should be selected according to pipeline size, operating pressure, temperature, media, body material, disc material, seat material and end connection. The exact pressure and temperature rating should be confirmed for the selected model.
10. Where can I buy Aira Butterfly Valves in Delhi or Noida?
For Aira Butterfly Valve requirements in Delhi and Noida, buyers can contact S R Metal Industries with their required size, media, pressure, temperature and connection details for the appropriate valve selection.
Conclusion
For industrial pipeline requirements, Aira Butterfly Valves supplied by S R Metal Industries are available in multiple sizes, materials, seat configurations and end connections. From wafer and lug type valves to flanged and double-flanged designs, the appropriate configuration can be selected according to the application's media, pressure, temperature and pipeline requirements.
For Butterfly Valve Suppliers in Delhi & Noida, contact S R Metal Industries with your application details to identify the appropriate Aira Butterfly Valve specification.
