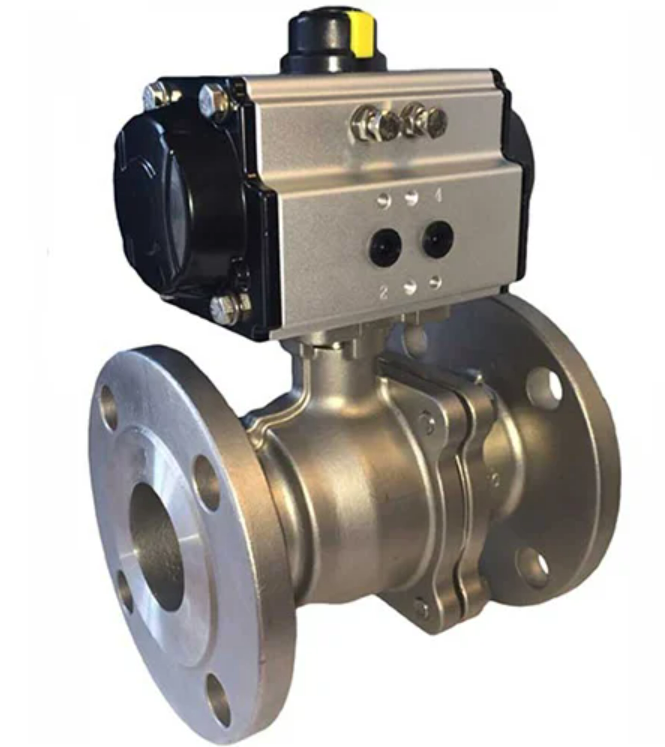

Pneumatic Actuator Ball Valve
A Pneumatic Actuator Ball Valve is an automated valve system designed to control the flow of liquids, gases, and other media in industrial pipelines using compressed air. This type of valve combines a ball valve mechanism with a pneumatic actuator, allowing quick and efficient opening or closing without manual operation. Pneumatic actuator ball valves are widely used in industries such as oil & gas, chemical processing, water treatment, pharmaceuticals, food processing, and power plants.
The main component of a ball valve is a spherical ball with a hole (bore) through its center. When the valve is open, the hole aligns with the pipeline, allowing fluid to flow freely. When the pneumatic actuator rotates the ball 90 degrees, the hole turns perpendicular to the flow direction, stopping the fluid completely. This quarter-turn operation makes the valve very fast and easy to control.
Pneumatic actuators operate using compressed air and are generally available in single-acting (spring return) and double-acting designs. In a single-acting actuator, air pressure opens the valve and a spring returns it to its original position during air failure. In a double-acting actuator, air pressure is used for both opening and closing the valve. This system ensures reliable automation and quick response in industrial processes.
Pneumatic actuator ball valves are known for their tight sealing, durability, and low maintenance requirements. They are manufactured using high-quality materials such as stainless steel, brass, carbon steel, or PVC, making them suitable for different pressure and temperature conditions. These valves can also be fitted with accessories like solenoid valves, limit switches, positioners, and air filter regulators to enhance control and monitoring.
Due to their fast operation, long service life, and efficient flow control, pneumatic actuator ball valves are an ideal solution for automated pipeline systems. Their compact design and reliable performance make them an essential component in modern industrial automation and fluid handling applications.
