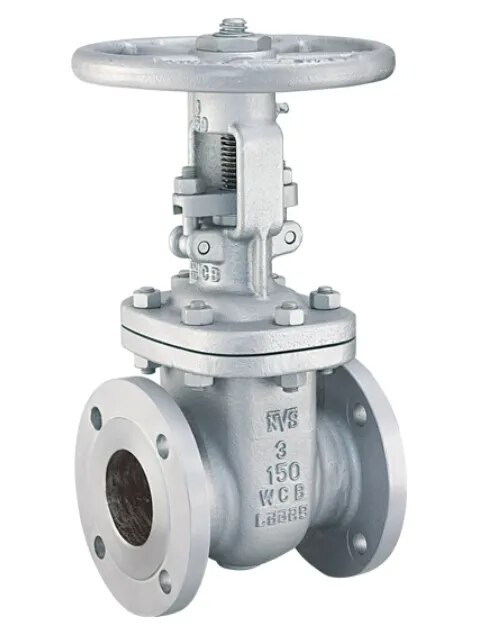

Cast Steel Gate Valves
Description
Size 1/2“-14”
Brand Crest, Qinn, Flowtek, Neta
Material Cast Steel
Media Air, Water, Chemicals, Gas
Connection Flange
Nominal Pressure PN1.0-32.0MPa
Cast Steel Gate Valves are for high pressure and high-temperature applications for a wide range of fluids except for slurries and viscous fluids. These valves comprise a bolted bonnet, a rising stem, an outside screwed & yoke stainless steel stem wedge and seat rings facing with 13% chrome steel. These valves can be installed in a vertical or horizontal position without affecting the direction of the fluid flow in the line.
Manufacturing Standard:
API 600/ANSI
B16. 10/B16.5
B16.34
Ratings & Size:
150 - 2“ to 20”
300 - 2“ to 16”
600 - 2“ to 10”
Applications:
Chemical
Refineries
Petrochemical
Gas
Fertilizer Plant
Power Generation Plant (Hydro-Electric & Nuclear)
Steel Plants & Allied Industries
Process Industries etc.
